Introduction

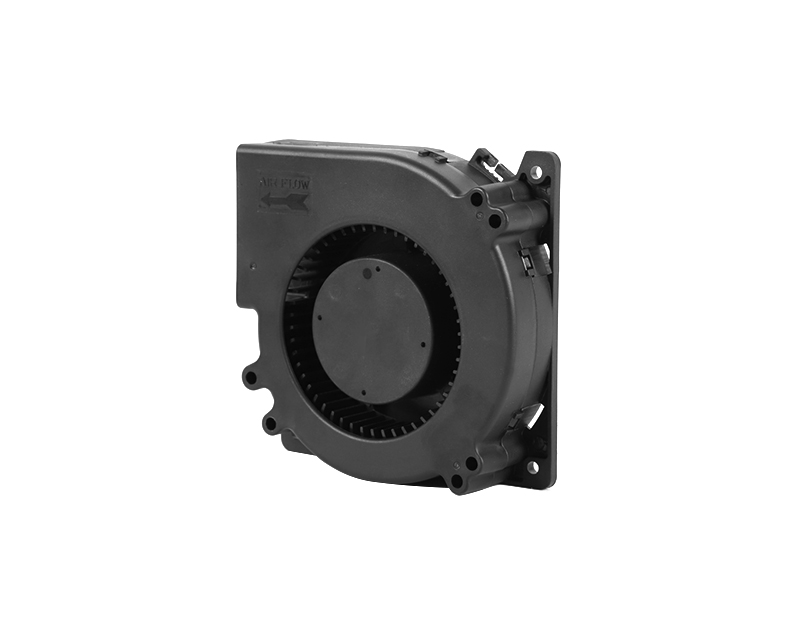

In the dynamic field of thermal management for electronic systems, fans play a crucial role in maintaining optimal operating temperatures. The 12V 12038 7700RPM fan represents a significant offering in the cooling solutions market. With its specific electrical requirements, distinct physical dimensions, and a notable rotational speed, this fan is designed to meet the cooling demands of a diverse range of applications, from high - end computing rigs to industrial machinery.

 Technical Specifications

Electrical Characteristics

The "12V" in the fan's description indicates its standard operating voltage. This 12 - volt requirement is in line with the power supply capabilities of most common power units in the electronics industry. Whether it's a desktop computer power supply, an industrial power module, or a server power system, they can readily provide the necessary 12 volts to drive the fan. The fan's motor is engineered to operate most efficiently at this voltage, converting electrical energy into mechanical energy to drive the rotation of the fan blades.

Power consumption is an important aspect. Given the 7700RPM rotational speed, the 12V 12038 fan consumes a reasonable amount of power. At full - speed operation, it typically draws around 2 - 3 watts, depending on factors such as the motor's efficiency, the quality of its bearings, and the overall design of the fan. However, this power consumption is a trade - off for the cooling performance it offers. In applications where effective heat dissipation is crucial, such as in overclocked CPUs or high - performance GPUs, the benefits of maintaining optimal temperatures often outweigh the power usage. Some models of these fans come equipped with variable speed control, which allows for power consumption to be adjusted according to the actual cooling needs of the system. This feature can be particularly useful in reducing power consumption during periods of low - load operation when the cooling requirements are less demanding.

Physical Dimensions

The "12038" in the fan's name provides key details about its physical dimensions. The first number, 120, represents the width and length of the fan, both measuring 120 millimeters. This relatively large size compared to some smaller fans offers several advantages. The larger blade diameter allows for a greater surface area, which in turn enables the fan to move a larger volume of air when rotating. This makes the 12038 fan suitable for applications where substantial cooling power is required, such as in large - scale server racks or high - end gaming PCs. The second number, 38, indicates the fan's thickness, which is 38 millimeters. This thickness houses the fan's motor, bearings, and other internal components, while still maintaining a profile that can be easily integrated into standard - sized computer cases and many industrial enclosures.

The 120 - millimeter size also provides more flexibility in terms of installation. In a computer case, for example, multiple 12038 fans can be installed in a coordinated manner to create an efficient airflow pattern. They can be placed at the front, rear, top, or side of the case, depending on the case design and the cooling requirements of the components inside. In industrial applications, the 12038 fan's size can fit into larger equipment enclosures, where it can be used to cool multiple components simultaneously.

Blade Design

The blades of the 12V 12038 7700RPM fan are carefully crafted to optimize airflow and minimize turbulence. They are typically made from lightweight yet durable materials, such as high - quality plastics or composite materials. The use of lightweight materials helps to reduce the inertia of the blades, allowing the fan to reach its operating speed more quickly and efficiently. At the same time, the durability of these materials ensures that the blades can withstand the high - speed rotation without deforming or breaking over time.

The shape of the blades is aerodynamically designed to scoop up air efficiently as the fan rotates at 7700RPM. Many 12038 fans feature a curved blade design. This curvature helps in directing the air in a more focused and streamlined manner. As the blades rotate, the curved shape guides the air towards the center of the fan's rotation and then accelerates it outwards, creating a more powerful and directed airflow. The number of blades on these fans can vary, with common configurations including 7, 9, or 11 blades. A greater number of blades can potentially result in more stable airflow, as each blade contributes to the overall air movement. However, the number of blades also needs to be balanced with the motor's ability to drive them. An excessive number of blades could increase the load on the motor, potentially reducing the fan's speed and efficiency. Manufacturers conduct extensive research and testing to determine the optimal number of blades for a given fan design, taking into account factors such as airflow requirements, noise levels, and power consumption.

Rotational Speed (7700RPM)

The 7700RPM rotational speed is a defining characteristic of the 12V 12038 fan. At this speed, the fan can move a significant volume of air in a short period. The high - velocity air movement is essential for quickly dissipating heat from components that generate a large amount of thermal energy. For example, in a high - performance computing setup, the CPU and GPU can generate substantial heat during intensive tasks such as gaming, video editing, or scientific simulations. The 12038 fan, with its 7700RPM rotation, can rapidly cool the heat sinks associated with these components. It blows air over the heat sink fins, facilitating the transfer of heat from the components to the air and then expelling the heated air out of the system.

However, a high rotational speed also brings certain challenges. The increased speed leads to higher levels of noise generation and more wear and tear on the fan components. To address the noise issue, manufacturers employ various noise - reduction technologies. These may include the use of improved blade aerodynamics, such as blades with serrated edges or special coatings that reduce turbulence. Vibration - dampening materials are also used to isolate the fan from the system's chassis, minimizing the transmission of vibrations that contribute to noise. For wear and tear, high - quality bearings and motor components are used. The bearings are designed to withstand the high - speed rotation and are often lubricated with specialized high - performance lubricants to reduce friction and extend the lifespan of the fan.

Airflow and Pressure

Airflow, measured in cubic feet per minute (CFM), is a crucial metric for evaluating the cooling performance of the 12V 12038 7700RPM fan. Due to its large blade diameter and high rotational speed, this fan can achieve an impressive CFM value. Depending on the specific model and blade design, a 12038 fan running at 7700RPM might be able to move between 60 - 100 CFM of air. This high - volume airflow is essential for effectively sweeping away the heat that accumulates around heat - sensitive components.

In addition to airflow, air pressure is also a critical factor. In many applications, the air needs to be pushed through tight spaces, such as the narrow gaps between heat sink fins or through the internal channels of an industrial enclosure. The 12038 fan, with its powerful motor and aerodynamic blades, can generate sufficient air pressure to force the air through these obstructions. This ensures that all parts of the heat sink or the enclosed space are effectively cooled, maximizing the heat dissipation efficiency. For example, in a server rack, where there are multiple heat - generating components and a complex arrangement of cables and other obstructions, the 12038 fan's ability to generate high air pressure allows it to maintain a proper airflow pattern, cooling all the components evenly.

 Applications

High - Performance Computing

In the high - performance computing realm, components such as CPUs and GPUs generate a substantial amount of heat. Overclocked CPUs, which are pushed beyond their standard operating frequencies to achieve higher performance, require efficient cooling solutions to maintain stable operation. The 12V 12038 7700RPM fan can be used in multiple ways in a high - performance computing setup.

For CPU cooling, it can be installed as part of an air - cooled heatsink system. In a traditional heatsink setup, the 12038 fan can be mounted on top of the heatsink, blowing air downwards onto the fins. The high - speed air movement helps in quickly transferring the heat from the CPU to the heatsink and then dissipating it into the surrounding air. In more advanced setups, multiple 12038 fans can be used in a push - pull configuration. This involves placing fans on both sides of the heatsink, with some pushing air onto the heatsink and others pulling air through it. This significantly increases the overall cooling performance, allowing the CPU to operate at high clock speeds without overheating.

GPUs also benefit greatly from the cooling capabilities of the 12038 fan. In high - end gaming or professional graphics workstations, GPUs can generate a large amount of heat, especially when running graphics - intensive applications or games with high - resolution textures and complex visual effects. The 12038 fan can be installed as an additional cooling fan near the GPU, targeting the GPU's heatsink. This extra cooling can prevent the GPU from throttling its performance due to overheating, ensuring smooth and high - frame - rate gaming or seamless operation of graphics - intensive applications.

Industrial Applications

Industrial equipment often operates in harsh environments and may have components that generate significant heat. The 12V 12038 7700RPM fan is well - suited for cooling such equipment. In industrial control panels, where multiple electronic components are packed together in a confined space, the 12038 fan can be used to maintain a proper temperature.

In industrial servers, which are designed to handle large - scale data processing and storage for manufacturing plants, logistics centers, and other industrial operations, heat management is crucial. The 12038 fan can be installed in server racks to improve the overall airflow and cooling efficiency. It can be placed in areas where hotspots are likely to occur, such as near high - density storage arrays or powerful processors. The fan's ability to move a large volume of air at high speed helps in dissipating the heat generated by these components, ensuring the reliable operation of the server and the overall industrial process.

In industrial machinery, such as CNC machines or robotic arms, there are often motors and control units that generate heat during operation. The 12038 fan can be used to cool these components, preventing overheating and potential damage. Its ability to generate high air pressure allows it to work effectively in environments with complex internal airflow paths.

Networking Equipment

Networking equipment, such as high - performance routers and switches, also generates heat during operation. As data traffic continues to grow, these devices need to be cooled effectively to prevent performance degradation. The 12V 12038 7700RPM fan can be used in the cooling systems of networking equipment.

In a large - scale data center network, routers and switches are often stacked in racks. The 12038 fan can be installed in the racks to create a proper airflow pattern. It can draw in cool air from the front of the rack and expel the hot air from the back, ensuring that the networking equipment operates within its optimal temperature range. This helps in maintaining a stable network connection and preventing network outages due to overheating of the equipment.

In smaller - scale networking setups, such as in a small office or a home network with high - end networking devices, the 12038 fan can also be used to provide additional cooling. It can be installed in the device's enclosure to improve the internal airflow, keeping the components cool and ensuring reliable operation.

 Advantages over Lower - Speed or Larger Fans

Superior Cooling Performance

The 12V 12038 7700RPM fan offers superior cooling performance compared to lower - speed fans. Lower - speed fans simply cannot move air as quickly or efficiently as the 12038 fan running at 7700RPM. In applications where components generate a large amount of heat, such as in overclocked CPUs or high - end GPUs, the 12038 fan can quickly dissipate the heat, preventing overheating and performance throttling.

Compared to larger fans, the 12038 fan's combination of size and speed allows it to achieve excellent cooling performance in a more compact space. Larger fans may have a larger blade surface area, but they may not be able to rotate as fast as the 12038 fan. The 12038 fan's ability to move a substantial volume of air at a relatively high speed makes it a more effective cooling solution in environments where space is somewhat limited but the cooling requirements are high. For example, in a mid - tower computer case, a 12038 fan can provide sufficient cooling for high - performance components without taking up excessive space, while a much larger fan might be too cumbersome to install.

Faster Heat Dissipation

The 7700RPM rotational speed of the 12V 12038 fan enables faster heat dissipation. When a component starts to heat up, the 12038 fan can quickly respond by moving a large volume of air over the heat - generating area. This rapid heat dissipation is crucial in applications where the temperature of the component needs to be controlled in real - time.

For example, in a data center server during peak usage hours, the CPU and storage drives can generate a significant amount of heat. The 12038 fan can quickly cool these components, preventing the temperature from reaching dangerous levels that could cause the server to slow down or crash. In contrast, lower - speed fans may take longer to dissipate the heat, leading to a temporary increase in component temperature and potential data loss or service disruptions.

Optimal Size - Performance Ratio

The 120 - millimeter size of the 12038 fan provides an optimal size - performance ratio. It is large enough to have a significant blade surface area for moving a large volume of air, but not so large as to be difficult to install in most standard - sized enclosures. This makes it more versatile than extremely large fans, which may be overkill for some applications or difficult to fit into smaller spaces.

At the same time, compared to smaller fans, the 12038 fan's larger size allows it to generate more air pressure and move more air overall. In applications where there are significant internal obstructions, such as in a server rack with multiple components and cables, the 12038 fan's size and performance combination enable it to maintain a proper airflow pattern, ensuring that all components are effectively cooled.

 Challenges and Considerations

Noise Generation

One of the primary challenges associated with the 12V 12038 7700RPM fan is noise generation. Operating at a relatively high speed, the fan produces a significant amount of acoustic noise. The rapid movement of the blades through the air creates turbulence, which results in a high - pitched noise. In environments where quiet operation is desired, such as in a home office or a media center, this noise can be a major drawback.

To mitigate this issue, manufacturers employ various noise - reduction techniques. They may use advanced blade designs that reduce turbulence, such as blades with serrated edges or special coatings. Vibration - dampening materials can also be used to isolate the fan from the system's chassis, reducing the transmission of vibrations that contribute to noise. Additionally, some fans may come with variable speed control, allowing the fan to operate at lower speeds when the cooling demand is lower, thereby reducing noise. However, these noise - reduction measures may sometimes come at the expense of a slight reduction in the fan's cooling performance, so a balance needs to be struck.

Wear and Tear

The high - speed operation of the 12V 12038 7700RPM fan subjects its components, such as the motor, bearings, and blades, to significant wear and tear. The continuous rotation at 7700RPM can cause the bearings to degrade over time, leading to reduced fan performance and potentially fan failure.

To address this, manufacturers use high - quality materials in the construction of the fan. The bearings are often made from durable materials and are lubricated with high - performance lubricants to reduce friction. The motor is designed to withstand the high - speed operation and is built with robust components. Regular maintenance, such as periodic cleaning to remove dust and debris that can affect performance, is also recommended to extend the fan's lifespan. However, even with these measures, the high - speed operation means that the fan may have a relatively shorter lifespan compared to lower - speed fans.

Compatibility

Ensuring compatibility is another important consideration when using the 12V 12038 7700RPM fan. The fan's power connector needs to be compatible with the power source in the device. Some devices may have limited power supply capabilities, and the 12038 fan's power consumption, especially at full speed, may pose a problem.

In addition, the fan's physical dimensions need to fit into the available space in the device. While the 120 - millimeter size is relatively common in many applications, there may still be cases where the mounting holes or the overall size of the fan do not match the device's design. Before installing the fan, it is crucial to check the device's specifications and ensure that the 12038 fan is a suitable fit in terms of power requirements and physical dimensions.

 Future Developments

Advanced Materials and Manufacturing Techniques

As technology continues to advance, future versions of the 12V 12038 7700RPM fan are likely to benefit from advanced materials and manufacturing techniques. New materials with better heat - dissipation properties may be used in the construction of the fan blades. For example, materials with high thermal conductivity, such as graphene - enhanced composites, could be used to not only move air but also help dissipate heat more effectively.

Advanced manufacturing techniques, such as 3D printing, may also be used to create more complex and efficient fan blade designs. 3D printing allows for the creation of intricate shapes that are difficult to achieve with traditional manufacturing methods. These advanced blade designs could further optimize airflow and reduce noise, while maintaining or even improving the fan's cooling performance.

Smart and Adaptive Cooling

The 12V 12038 7700RPM fan could be equipped with intelligent control circuitry. This circuitry would receive the temperature data and, in response, adjust the fan's speed in a more precise and dynamic manner. During periods of light workload, such as when a computer is simply running basic office applications or a server is handling minimal data traffic, the fan could operate at a much lower speed. This not only reduces power consumption but also significantly cuts down on noise levels, creating a more pleasant environment for users.

Conversely, when the temperature sensors detect a rapid increase in component temperatures, perhaps during a high - intensity gaming session on a PC or a sudden spike in data processing in a server, the fan would quickly ramp up to its maximum 7700RPM or an appropriate high - speed setting. This real - time adaptability ensures that the components are always kept within their optimal temperature range, maximizing performance and longevity. Moreover, these smart cooling systems could be integrated with overall system management software. In a data center, for instance, the server management software could monitor the temperature and performance of all servers equipped with these smart 12038 fans. If a particular server's cooling system is consistently operating at high speeds or if the temperatures are approaching critical levels, the software could flag it for maintenance or resource re - allocation, ensuring the overall stability and efficiency of the data center.

Miniaturization with Enhanced Performance

Despite its already relatively compact 120 - millimeter size, future trends may lead to further miniaturization of the 12V 12038 7700RPM fan without sacrificing its cooling capabilities. As electronic components continue to shrink in size while increasing in power, the demand for smaller yet more powerful cooling solutions grows. Advancements in motor technology could lead to the development of smaller, more efficient motors that can still drive the fan blades at high speeds. These motors might utilize new magnetic materials or more advanced winding techniques to achieve higher power - to - size ratios.

Regarding the blade design, innovative manufacturing processes could enable the creation of thinner yet stronger blades. For example, micro - manufacturing techniques could be used to produce blades with intricate internal structures that enhance their aerodynamic performance. These thinner blades would reduce the overall weight of the fan, allowing for faster acceleration to the 7700RPM speed and potentially reducing power consumption. Additionally, the miniaturized fan could be designed to be more easily integrated into components themselves. Instead of being a separate, external cooling device, future iterations might be built directly into heat sinks or even incorporated into the design of the electronic components, such as CPUs or GPUs. This would reduce the overall space requirements within a system and potentially improve the efficiency of heat transfer from the component to the cooling mechanism.

Integration with Hybrid Cooling Systems

Another area of development for the 12V 12038 7700RPM fan could be its integration with hybrid cooling systems. Hybrid cooling combines different cooling methods, such as air - cooling and liquid - cooling, to achieve better performance. The 12038 fan could play a crucial role in such systems. In a liquid - air hybrid cooling setup for a high - performance computer, the fan could be used to cool the radiator of the liquid - cooling loop more effectively. The liquid in the loop absorbs heat from the CPU or GPU and transfers it to the radiator. The 12038 fan, with its high - speed and high - airflow capabilities, would blow air over the radiator, enhancing the heat dissipation from the liquid to the surrounding air.

In industrial applications, a similar hybrid approach could be taken. For example, in a manufacturing plant where large - scale equipment generates significant heat, a hybrid cooling system could use a liquid - cooling system to handle the bulk of the heat load, while 12038 fans are deployed to cool specific hotspots or to improve the overall air circulation within the equipment enclosure. This integration of different cooling methods not only improves the overall cooling performance but also allows for more flexibility in designing cooling solutions for various applications. The 12038 fan, with its ability to generate high air pressure and move large volumes of air, can help to bridge the gap between liquid - cooling and the ambient environment, ensuring efficient heat transfer across the entire cooling system.

In conclusion, the 12V 12038 7700RPM fan is a versatile and high - performance cooling component with a wide range of current applications and significant potential for future development. Its technical specifications, including its electrical requirements, physical dimensions, blade design, rotational speed, and airflow capabilities, make it suitable for high - performance computing, industrial, and networking applications. Although it faces challenges such as noise generation, wear and tear, and compatibility issues, ongoing technological advancements are likely to address these concerns and further enhance its capabilities. As the demand for efficient and reliable cooling solutions continues to grow in various industries, the 12038 fan is expected to play an increasingly important role in maintaining the optimal performance and reliability of electronic systems.
